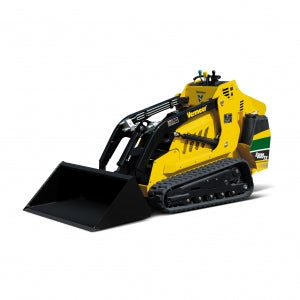

Vermeer Mini Loader
Length with Standard Bucket- 106 " 269.2 cm
Length without Standard Bucket- 84 " 213.4 cm
Width with Standard Bucket 42- " 106.7 cm
Width Without Standard Bucket- 36 " 91.4 cm
Height- 57 " 144.8 cm
Height- (to Hinge Pin) 84.5 " 214.6 cm
Make and Model
Kubota V1505-E4B | ||
Fuel Type | Diesel | |
Fuel Tank Capacity | 14.5 gal | 54.9 L |
Gross Horsepower | 24.8 hp | 18.5 kw |
Cooling System | Liquid | |
Maximum Angle of Inclination | 30 deg |
Track Performance
Rated Operating Capacity (SAE) | 750 lbs | 340.2 kg |
Tipping Capacity (With 175 lb (79.38 kg) operator) | 2145 lbs | 973 kg |
Travel Speed | 4.5 mph | 7.2 km/h |
Ground Pressure (Narrow Tracks) | 4.1 psi | 28.3 kPa |
